Footprint Generator: DIL Pads

Default units: mm mil (you may override this by adding "mil" or "mm" to your values below)

Pad Numbering Sequence

 A      B      C      D      E      F
1 8    1 5    1 2    8 1    5 1    2 1
2 7    2 6    3 4    7 2    6 2    4 3
3 6    3 7    5 6    6 3    7 3    6 5
4 5    4 8    7 8    5 4    8 4    8 7

NP:	(number of pads)
SEQ:	(pad seq, see chart)

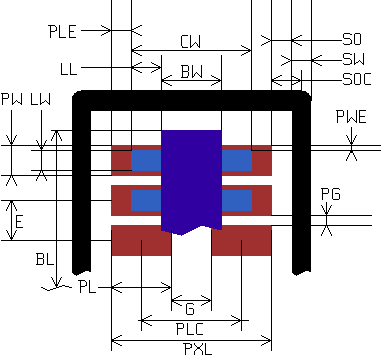

Enter whatever data you have, as long as it's sufficient to describe the footprint:

BL:	(body length)
BW:	(body width)
	Draw physical outline too?
C:	(clearance)
CW:	(component width)
E:	(pitch)
G:	(gap)
LL:	(lead length)
LW:	(lead width)
M:	(mask)
PG:	(pad gap)
PL:	(pad length)
PLC:	(pad length, center-center)
PLE:	(pad length extension)
PW:	(pad width)
PWE:	(pad width extension)
PXL:	(pad extents length)
SO:	(silk offset)
SOC:	(silk offset to center)
SW:	(silk width)

Note that M (mask) is the distance between the copper and the mask. It can be a percent, which is a percent of PG (pad gap) by appending % (example: 25% instead of 6mil). Likewise, C is the distance between the copper and any polygons, with a percent being a percent of PG. PWE and PLE can be percentages of LW and LL, respectively, and G can be a percent of BW.
